Freza asfalt
Pret la cerere

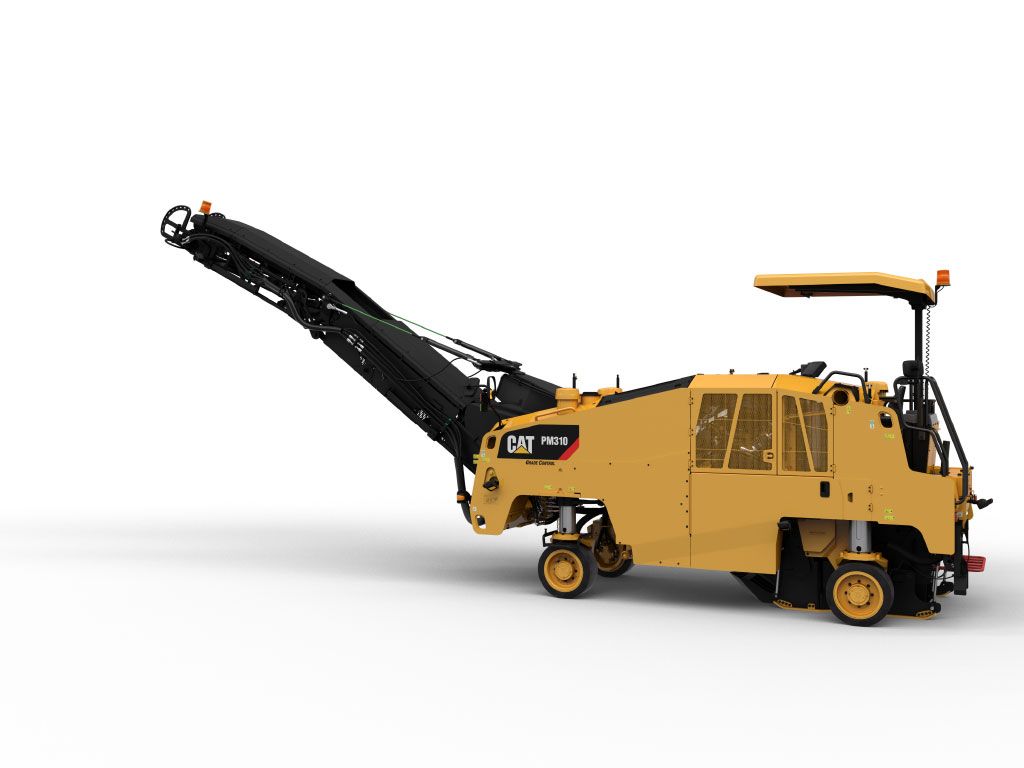

The new PM300 models with a track undercarriage combine enhanced production capabilities, optimized performance and simplified service to complete tough milling applications with productive results.
Descriere
+
-
Cutting System
| Milling Width | 1225 mm |
Weights
| Operating Weight - With Full Water Tank | 21142 kg |
| Shipping Weight - With Empty Water Tank | 19530 kg |
Operating Specifications
| Operating Speed | 33 m/min |
| Maximum Travel Speed | 7.5 km/h |
| Inside Turn Radius | 1.92 m |
Engine
| Engine Model | C9.3 ACERT |
| Gross Power | 242 kW |
Dimensions
| Operating Length - Conveyor Up | 11.11 m |
| Operating Width | 2.55 m |
| Maximum Operating Height | 5.15 m |
| Minimum Operating Height | 3 m |
| Maximum Truck Clearance | 4.7 m |
| Shipping Length - Base Machine | 5.9 m |
| Shipping Maximum Height | 2.98 m |
| Shipping Width | 2.55 m |
| Shipping Length - With Conveyor Folded | 9.32 m |
Rotor Assembly
| Cutting Width | 1225 mm |
| Maximum Cutting Depth | 330 mm |
| Number of Cutting Tools | 112 |
Conveyor System
| Collecting Conveyor Speed | 252 m/min |
| Collecting Conveyor Width | 600 mm |
| Discharge Conveyor Length | 6.3 m |
| Discharge Conveyor Width | 600 mm |
| Discharge Conveyor Maximum Speed | 252 m/min |
| Discharge Conveyor Swing - From Center | 60 ° |
Service Refill Capacities
| Fuel Tank Capacity | 600 l |
| Water Spray System | 1260 l |
